BR 34929 Mk 1 Brake Corridor Second Built 1957

BR 34929 Mk 1 Brake Corridor Second Built 1957

Present Location Gloucs Warks
County Location Gloucestershire
Designed For BR
Built By Chas Roberts
Diagram Number 182
Lot Number 30225
Type BSK
First Number 34929
Later Numbers E34929
Present Number M34929
Livery BR Maroon
Gauge 4ft 8 1/2in
Wheel Arrangement 4-w bogies
Original Underframe Yes
Original Bogies Yes
Additional Notes P 1982 by Stratford Area Group of Gloucestershire Warwickshire Steam Railway. Refurbished 07/00. Accessible accommodation in Guard's area: new window, double doors and corridor doors fitted. B1 bogies. 09/16: at Winchcombe. 07/17: refurbishment under way - when completed it was intended to be the brake for the third rake and to be out-shopped in BR(W) Chocolate and Cream livery. 01/22: refurbishment complete, ready for start of operating season in 03/22: existing accessible area has been extended to take up all of the previous goods area (see interior picture below); livery changed from BR crimson lake and cream to BR maroon.
External Structural Condition Very Good
Internal Structural Condition Very Good
Underframe Condition Very Good
External Condition Very Good
Internal Finish Very Good
Degree of External Originality As built/last Passenger rebuild (BR or before)
Degree of Internal Originality Some replaced/reproduced material
Degree of Underframe/Running Gear Originality As built/last Passenger rebuild (BR or before)
Degree of External Authenticity Good
Degree of Internal Authenticity Good
Degree of Underframe Authenticity Very Good
Rarity Many
Importance No Immediate Importance/Not Applicable
Storage Secure Open
Operational Yes
Date Inspected 10/04/2005
Inspected By Kevin Stroud

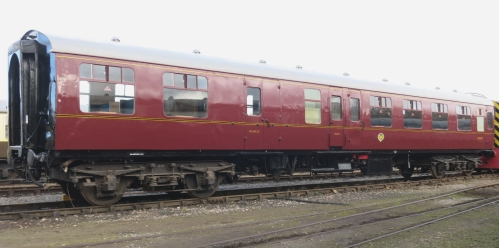

Date of Image 19/01/2022
Photo Taken By Rod Wells
At Risk No
Scrapped No
Record Last Updated 21/01/2022

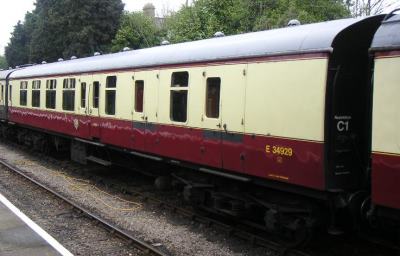

Kevin Stroud 10/04/2005. Earlier condition

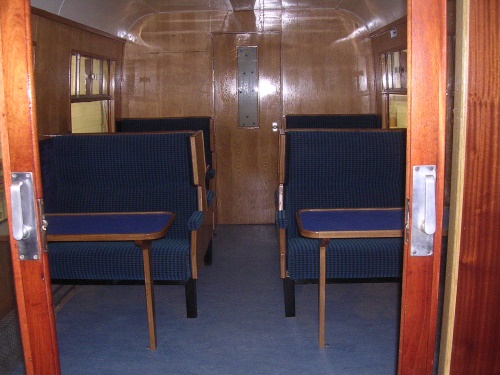

Rod Wells 08/12/2021: extended accessible area
